Sentinel
Sentinel
Sentinel controllers by Vanguard LED offer an ideal and refined solution for content and processing support for displays up to 4K resolution.Offering full 4K input capability and up to 8.8 million pixels out, Sentinel can is a great fit for displays up to a 4K resolution. Sentinel is a video splicer, processor, and controller all in one.Sentinel has 4K video input capability, supporting up to UltraHD resolution and HDR image processing and transmission.

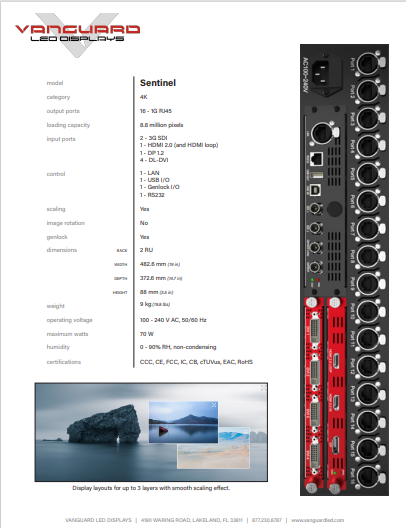

| Sentinel Controllers – Product Specification Table | |
| Parameter | Value |
| Model | Sentinel |
| Category | 4K |
| Output Ports | 16 × 1G RJ45 |
| Loading Capacity | 8.8 million pixels |
| Input Ports | 2 × 3G SDI1 × HDMI 2.0 (with HDMI loop)1 × DP 1.24 × DL-DVI |
| Control Interfaces | 1 × LAN1 × USB I/O1 × Genlock I/O1 × RS232 |
| Scaling | Yes |
| Image Rotation | No |
| Genlock | Yes |
| Sentinel Controllers – Physical & Electrical Specifications | |
| Parameter | Value |
| Rack Size | 2 RU |
| Width | 482.6 mm (19 in) |
| Depth | 372.6 mm (14.7 in) |
| Height | 88 mm (3.5 in) |
| Weight | 9 kg (19.8 lbs) |
| Operating Voltage | 100 – 240 V AC, 50/60 Hz |
| Maximum Power | 70 W |
| Operating Humidity | 0–90% RH, non-condensing |
| Certifications | CCC, CE, FCC, IC, CB, cTUVus, EAC, RoHS |
The Sentinel controller works as a video splicer, processor, and controller all in one. It manages LED displays that go up to 4K resolution. It takes care of handling video input processing it, and distributing content. This makes it great to deliver smooth top-quality visuals.
The Sentinel handles 4K Ultra HD video input and delivers up to 8.8 million pixels as output. This makes it perfect to use on LED displays that need super-sharp and ultra-clear visuals.
Yes. The Sentinel controller works with HDR processing and transmission. This lets it deliver brighter colors sharper contrast, and a better watching experience on LED screens that support it.
Yes. The processing power of Sentinel lets it handle various display setups. Whether you use one large screen or link several LED panels to form a video wall, it keeps the image quality sharp.
Sentinel works great in boardrooms, control spaces, studios for broadcasts live shows digital displays, or anywhere top-notch 4K video handling and content control matter most.
