Freeform · Unique shapes and non-standard aspect ratios
Zirconium

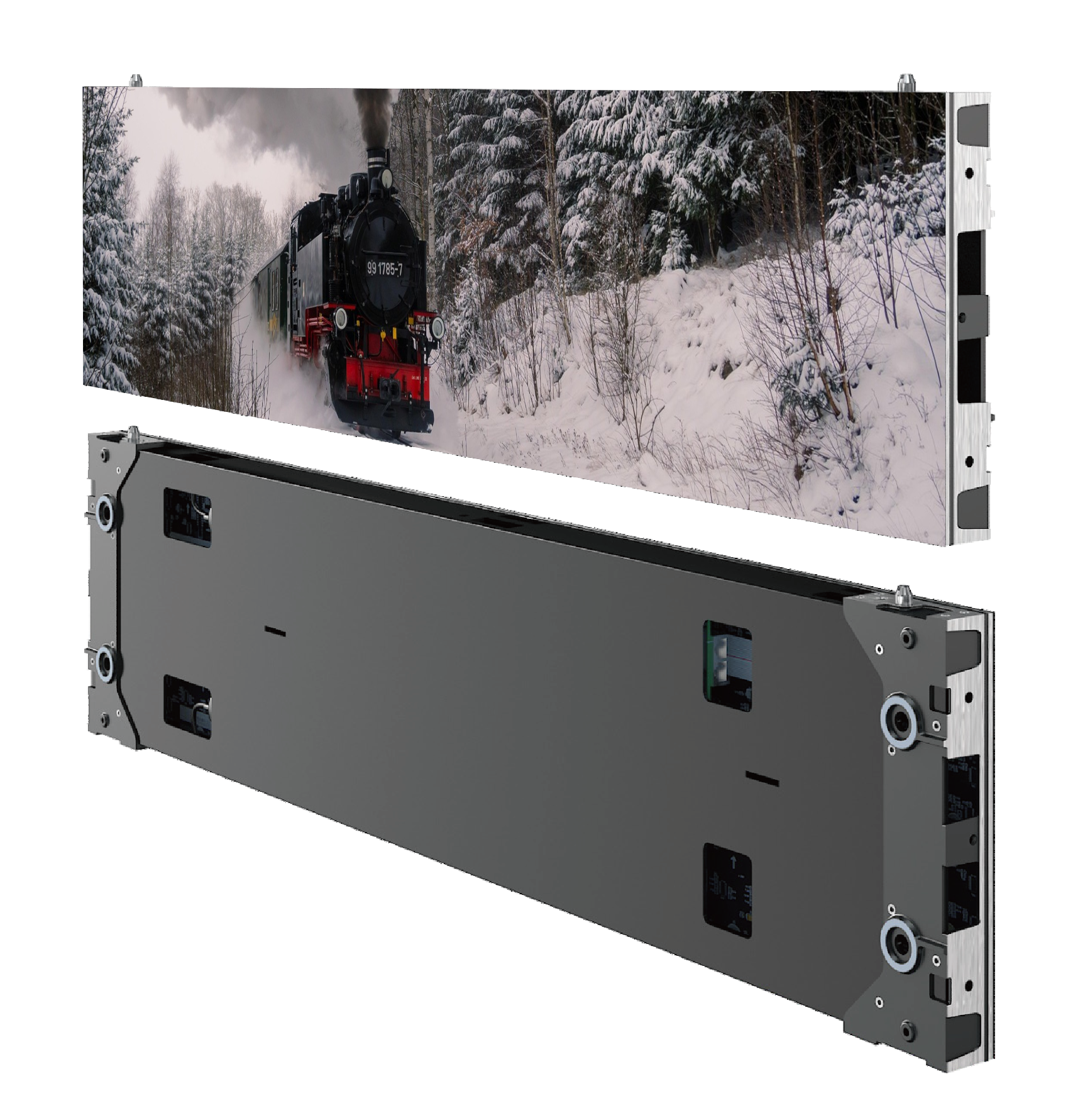

Custom-Shape Indoor LED Display
The Zirconium Series is an indoor DVLED system for displays that are not a standard rectangle: non-standard aspect ratios, faceted curves, wrapped corners, and shapes that must fit an existing architectural opening. It is built from a 250 mm × 250 mm base cabinet in three widths (250, 500, and 1000 mm) and two heights (250 and 500 mm), so a wall can be sized to within 250 mm of any target dimension. Panel ends can be cut at 45 degrees to form multi-faceted curves or clean 90-degree corners.
Ideal for Unique shapes and non-standard aspect ratios
Pixel pitch (mm)
- 1.5SMD
- 1.9SMD
- 2.6SMD
- 3.9SMD
Specifications
Zirconium
Panel sizes
| Panel | 1000 × 500 mm | 1000 × 250 mm | 750 × 500 mm | 750 × 250 mm | 500 × 500 mm | 500 × 250 mm |
|---|---|---|---|---|---|---|
| Resolution W | 640 | 640 | 480 | 480 | 320 | 320 |
| Resolution H | 320 | 160 | 320 | 160 | 320 | 160 |
| Width | 1000 mm (39.4 in) | 1000 mm (39.4 in) | 750 mm (29.5 in) | 750 mm (29.5 in) | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) |
| Aspect ratio | 2.0:1 | 4.0:1 | 1.5:1 | 3.0:1 | 1.0:1 | 2.0:1 |
| Weight | 11 kg (24.3 lb) | 5.7 kg (12.6 lb) | 8 kg (17.6 lb) | 4.2 kg (9.3 lb) | 4 kg (8.8 lb) | 3.5 kg (7.7 lb) |
| Modules wide | 4 | 4 | 3 | 3 | 2 | 2 |
| Modules tall | 2 | 1 | 2 | 1 | 2 | 1 |
| Max W | 275 | 137.5 | 206.3 | 103.1 | 137.5 | 68.8 |
| Avg W | 96.3 | 48.1 | 72.2 | 36.1 | 48.1 | 24.1 |
| BTU/hr | 937.8 | 468.9 | 703.3 | 351.7 | 468.9 | 234.4 |
| Max stacking | N/A | N/A | N/A | N/A | N/A | N/A |
| Max hanging | 12 | 24 | 12 | 24 | 12 | 24 |
Panel
| Pixel pitch | 1.56 |
|---|---|
| Pixel type | SMD |
| Max brightness | 600 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 42 mm (1.7 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 160 |
|---|---|
| Module resolution H (px) | 160 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD1010 |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 409,600 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 8000:1 |
PROCESSING
| IC driver | ICN2165 |
|---|---|
| Scan rate | 1/64 |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1.0 - 4.0 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 550 |
| Avg W / m² | 192.5 |
| Max A/cascade | 20 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP30 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M6 |
| Cabling direction | Vertical |
| Connector power | C13/C14 |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A7s Plus |
|---|---|
| Vanguard 1G | NN40 |
Panel sizes
| Panel | 1000 × 500 mm | 1000 × 250 mm | 750 × 500 mm | 750 × 250 mm | 500 × 500 mm | 500 × 250 mm |
|---|---|---|---|---|---|---|
| Resolution W | 512 | 512 | 384 | 384 | 256 | 256 |
| Resolution H | 256 | 128 | 256 | 128 | 256 | 128 |
| Width | 1000 mm (39.4 in) | 1000 mm (39.4 in) | 750 mm (29.5 in) | 750 mm (29.5 in) | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) |
| Aspect ratio | 2.0:1 | 4.0:1 | 1.5:1 | 3.0:1 | 1.0:1 | 2.0:1 |
| Weight | 11 kg (24.3 lb) | 5.7 kg (12.6 lb) | 8 kg (17.6 lb) | 4.2 kg (9.3 lb) | 4 kg (8.8 lb) | 3.5 kg (7.7 lb) |
| Modules wide | 4 | 4 | 3 | 3 | 2 | 2 |
| Modules tall | 2 | 1 | 2 | 1 | 2 | 1 |
| Max W | 237.5 | 118.8 | 178.1 | 89.1 | 118.8 | 59.4 |
| Avg W | 83.1 | 41.6 | 62.3 | 31.2 | 41.6 | 20.8 |
| BTU/hr | 809.9 | 404.9 | 607.4 | 303.7 | 404.9 | 202.5 |
| Max stacking | N/A | N/A | N/A | N/A | N/A | N/A |
| Max hanging | 12 | 24 | 12 | 24 | 12 | 24 |
Panel
| Pixel pitch | 1.95 |
|---|---|
| Pixel type | SMD |
| Max brightness | 800 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 42 mm (1.7 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 128 |
|---|---|
| Module resolution H (px) | 128 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD1515 |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 262,144 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 8000:1 |
PROCESSING
| IC driver | ICN2055 |
|---|---|
| Scan rate | 1/32 |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1.0 - 4.0 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 475 |
| Avg W / m² | 166.3 |
| Max A/cascade | 20 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP30 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M6 |
| Cabling direction | Vertical |
| Connector power | C13/C14 |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
| Panel | 1000 × 500 mm | 1000 × 250 mm | 750 × 500 mm | 750 × 250 mm | 500 × 500 mm | 500 × 250 mm |
|---|---|---|---|---|---|---|
| Resolution W | 384 | 384 | 288 | 288 | 192 | 192 |
| Resolution H | 192 | 96 | 192 | 96 | 192 | 96 |
| Width | 1000 mm (39.4 in) | 1000 mm (39.4 in) | 750 mm (29.5 in) | 750 mm (29.5 in) | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) |
| Aspect ratio | 2.0:1 | 4.0:1 | 1.5:1 | 3.0:1 | 1.0:1 | 2.0:1 |
| Weight | 11 kg (24.3 lb) | 5.7 kg (12.6 lb) | 8 kg (17.6 lb) | 4.2 kg (9.3 lb) | 4 kg (8.8 lb) | 3.5 kg (7.7 lb) |
| Modules wide | 4 | 4 | 3 | 3 | 2 | 2 |
| Modules tall | 2 | 1 | 2 | 1 | 2 | 1 |
| Max W | 237.5 | 118.8 | 178.1 | 89.1 | 118.8 | 59.4 |
| Avg W | 83.1 | 41.6 | 62.3 | 31.2 | 41.6 | 20.8 |
| BTU/hr | 809.9 | 404.9 | 607.4 | 303.7 | 404.9 | 202.5 |
| Max stacking | N/A | N/A | N/A | N/A | N/A | N/A |
| Max hanging | 12 | 24 | 12 | 24 | 12 | 24 |
Panel
| Pixel pitch | 2.60 |
|---|---|
| Pixel type | SMD |
| Max brightness | 800 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 42 mm (1.7 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 96 |
|---|---|
| Module resolution H (px) | 96 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD2020 |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 147,456 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 8000:1 |
PROCESSING
| IC driver | ICN2055 |
|---|---|
| Scan rate | 1/32 |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1.0 - 4.0 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 475 |
| Avg W / m² | 166.3 |
| Max A/cascade | 20 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP30 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M6 |
| Cabling direction | Vertical |
| Connector power | C13/C14 |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
| Panel | 1000 × 500 mm | 1000 × 250 mm | 750 × 500 mm | 750 × 250 mm | 500 × 500 mm | 500 × 250 mm |
|---|---|---|---|---|---|---|
| Resolution W | 256 | 256 | 192 | 192 | 128 | 128 |
| Resolution H | 128 | 64 | 128 | 64 | 128 | 64 |
| Width | 1000 mm (39.4 in) | 1000 mm (39.4 in) | 750 mm (29.5 in) | 750 mm (29.5 in) | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) | 500 mm (19.7 in) | 250 mm (9.8 in) |
| Aspect ratio | 2.0:1 | 4.0:1 | 1.5:1 | 3.0:1 | 1.0:1 | 2.0:1 |
| Weight | 11 kg (24.3 lb) | 5.7 kg (12.6 lb) | 8 kg (17.6 lb) | 4.2 kg (9.3 lb) | 4 kg (8.8 lb) | 3.5 kg (7.7 lb) |
| Modules wide | 4 | 4 | 3 | 3 | 2 | 2 |
| Modules tall | 2 | 1 | 2 | 1 | 2 | 1 |
| Max W | 290 | 145 | 217.5 | 108.8 | 145 | 72.5 |
| Avg W | 101.5 | 50.8 | 76.1 | 38.1 | 50.8 | 25.4 |
| BTU/hr | 988.9 | 494.5 | 741.7 | 370.8 | 494.5 | 247.2 |
| Max stacking | N/A | N/A | N/A | N/A | N/A | N/A |
| Max hanging | 12 | 24 | 12 | 24 | 12 | 24 |
Panel
| Pixel pitch | 3.90 |
|---|---|
| Pixel type | SMD |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 42 mm (1.7 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 64 |
|---|---|
| Module resolution H (px) | 64 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD2020 |
|---|---|
| Shader/mask type | Plastic |
| Pixel density (/m2) | 65,536 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 8000:1 |
PROCESSING
| IC driver | ICN2150 |
|---|---|
| Scan rate | 1/16 |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1.0 - 4.0 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 580 |
| Avg W / m² | 203 |
| Max A/cascade | 20 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP30 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M6 |
| Cabling direction | Vertical |
| Connector power | C13/C14 |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
Sizes and configuration
- 1,000 × 500 mm (39.4 × 19.7 in)
- 750 × 500 mm (29.5 × 19.7 in)
- 500 × 500 mm (19.7 × 19.7 in)
- 1,000 × 250 mm (39.4 × 9.8 in)
- 750 × 250 mm (29.5 × 9.8 in)
- 500 × 250 mm (19.7 × 9.8 in)
Applications
Where it is used
- Columns, soffits, and wrapped corners in lobbies and atriums
- Ultra-wide or unusually tall displays (ribbon boards, ticker walls)
- Retrofits into existing openings or millwork
- Museum and exhibit installations with irregular footprints
Add-ons & accessories
Configure it your way
EM: epoxy mask (HOB)
EC: epoxy coating (GOB)
Trim: cosmetic edge protection
45° edges: convex and outside corners
Secure connection plates
Headers for hanging
Touch compatible
Flight cases
DATA+: redundant receiving cards
PER+: redundant power supplies
-Mag: reduced magnetism
Hydrophobic treatmentFrequently asked questions
About Zirconium
What is the Zirconium series?
Zirconium is our freeform indoor LED series, engineered for displays that must hit exact custom dimensions and creative shapes. Built on six panel sizes adjustable in 250mm increments, with pitches from 1.5mm to 3.9mm and 8,000:1 contrast, Zirconium fills the spaces standard panels can't — precisely.
Is the Zirconium series a good choice for custom LED displays?
Zirconium's flexible freeform design adjusts in 250mm increments both vertically and horizontally, with panels up to 1000mm (39.4") wide and 500mm (19.7") tall. Six panel sizes mix within one display, making it possible to match virtually any custom dimension or unique shape without compromise or filler framing.
What panel sizes does Zirconium offer?
Zirconium panels come in six sizes: widths of 500mm, 750mm, and 1000mm, each in 250mm and 500mm heights. All sizes share the same depth, finish, and pixel alignment, so they combine invisibly within a single display — the size mix serves the dimensions, never the other way around.
Can you build curved or angled LED walls with Zirconium?
Yes — Zirconium panels support up to a 45-degree edge chamfer on either side, enabling faceted curves, sharp corners including full 90-degree wraps, and custom angular shapes. The capability suits architectural installations, creative stage designs, and visual projects where the display's geometry is part of the design.
Can you swap modules between Zirconium panels?
Yes — all Zirconium panels use identical, interchangeable modules regardless of panel size. One spare module inventory serves the entire display, cutting spare parts requirements, simplifying maintenance across mixed panel sizes, and ensuring color-consistent repairs anywhere on the wall.
What pixel pitches are available for Zirconium?
Zirconium comes in four pixel pitches spanning roughly 1.5mm to 3.9mm — fine enough for close-viewing custom installations, economical enough for large architectural surfaces viewed at distance. Pitch and panel-size combinations let designers balance resolution, dimensions, and budget within one series.
What configuration options are available for Zirconium?
We call these Special Configurations — factory-built variants of the same panel, each tuned for a different priority. Zirconium comes in four: Normal, the standard configuration; Value, engineered for lowest cost; High Bright, reaching 3,000 nits for light-flooded architectural spaces; and Production, with 7,680Hz refresh for broadcast and on-camera environments where custom-shaped displays appear on camera.
Is Zirconium suitable for on-camera and broadcast use?
Yes — the Zirconium Production configuration delivers 7,680Hz refresh for clean, artifact-free camera capture, purpose-fit for scenic set pieces, custom-shaped studio backdrops, and architectural production elements filmed at moderate distance. Freeform geometry plus broadcast-grade refresh is a combination few display series offer.
Can Zirconium handle humid environments?
Zirconium is an indoor series, but an optional hydrophobic treatment applied to the module rear adds moisture resistance for notably humid interiors — natatoriums, atriums with water features, coastal buildings, and similar spaces. It's inexpensive peace of mind where indoor air carries more moisture than usual.
What kinds of custom projects work best with Zirconium?
Zirconium excels wherever standard dimensions don't fit: broadcast studio sets, art installations, museums, architectural and building-integrated displays, control centers with wall-to-wall requirements, and upscale corporate lobbies where the display must match the space to the inch — not the other way around.
How accurately can Zirconium match target dimensions?
Very accurately — with six panel sizes combinable in 250mm steps, Zirconium closes in on design dimensions that fixed-size panels can't reach, eliminating awkward gaps and the oversized filler framing that forces compromises. The display fits the architecture as drawn.
What warranty and service come with Zirconium?
Zirconium includes a 2-year warranty, extendable to 5 years, with spare parts included — and thanks to universal interchangeable modules, one compact spare inventory covers every panel size in the installation. Panels are front-serviceable with hot-swappable components for repairs measured in minutes.
How close can a Zirconium display get to my target dimensions?
With 250 mm increments in both width and height, a display can be built to within 250 mm (about 10 inches) of any requested width or height.
Can it wrap around a corner?
Yes. Panel ends cut at 90 degrees form a seamless corner; 45-degree cuts form faceted curves around columns or angled walls.
Zirconium vs. Wave: which do I need?
Choose Wave for smooth, continuous curves at fine pitch. Choose Zirconium for angular shapes, corners, and non-standard rectangles.
