Outdoor · Permanent installation
Einsteinium
Outdoor Fine-Pitch LED Display for Permanent Installation
Einsteinium series is a perfect fit for outdoor permanent installations. With two cabinet height options, displays can be easily configured with the width to the nearest half-meter (500 mm), and the height to the nearest quarter-meter (250 mm).
Einsteinium has a fine pitch range compared to most outdoor dvLED products, creating immersive non-reflective displays with a much closer recommended viewing distance.
Ideal for Outdoor, permanent installation
Pixel pitch (mm)
- 2.6SMD
- 3.9SMD
- 4.8SMD
- 5.9SMD
Specifications
Einsteinium
Panel sizes
| Panel | 500 × 1000 mm | 500 × 750 mm |
|---|---|---|
| Resolution W | 192 | 192 |
| Resolution H | 384 | 288 |
| Width | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 1000 mm (39.4 in) | 750 mm (29.5 in) |
| Aspect ratio | 0.5:1 | 0.7:1 |
| Weight | 14.5 kg (32 lb) | 11.5 kg (25.4 lb) |
| Modules wide | 2 | 2 |
| Modules tall | 4 | 3 |
| Max W | 360 | 270 |
| Avg W | 126 | 94.5 |
| BTU/hr | 1,227.6 | 920.7 |
| Max stacking | N/A | N/A |
| Max hanging | N/A | N/A |
Panel
| Pixel pitch | 2.60 |
|---|---|
| Pixel type | SMD |
| Max brightness | 4,500 |
| Environmental rating | Outdoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 90 mm (3.5 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 96 |
|---|---|
| Module resolution H (px) | 96 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD1516 |
|---|---|
| Shader/mask type | Plastic |
| Pixel density (/m2) | 147,456 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 5000:1 |
PROCESSING
| IC driver | ICN2055 |
|---|---|
| Scan rate | 1/24 |
| Processing depth (bit) | 13 |
| Processing depth range | 8-13 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1-4 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 720 |
| Avg W / m² | 252 |
| Max A/cascade | 16 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP65 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M10 |
| Cabling direction | Horizontal |
| Connector power | Seetronic Powercon |
| Connector data | Seetronic Ethercon |
| Serviceability | Front and Rear |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
| Panel | 500 × 1000 mm | 500 × 750 mm |
|---|---|---|
| Resolution W | 128 | 128 |
| Resolution H | 256 | 192 |
| Width | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 1000 mm (39.4 in) | 750 mm (29.5 in) |
| Aspect ratio | 0.5:1 | 0.7:1 |
| Weight | 14.5 kg (32 lb) | 11.5 kg (25.4 lb) |
| Modules wide | 2 | 2 |
| Modules tall | 4 | 3 |
| Max W | 360 | 270 |
| Avg W | 126 | 94.5 |
| BTU/hr | 1,227.6 | 920.7 |
| Max stacking | N/A | N/A |
| Max hanging | N/A | N/A |
Panel
| Pixel pitch | 3.90 |
|---|---|
| Pixel type | SMD |
| Max brightness | 5,000 |
| Environmental rating | Outdoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 90 mm (3.5 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 64 |
|---|---|
| Module resolution H (px) | 64 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD1921 |
|---|---|
| Shader/mask type | Plastic |
| Pixel density (/m2) | 65,536 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 5000:1 |
PROCESSING
| IC driver | ICN2153 |
|---|---|
| Scan rate | 1/16 |
| Processing depth (bit) | 13 |
| Processing depth range | 8-13 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1-4 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 720 |
| Avg W / m² | 252 |
| Max A/cascade | 16 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP65 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M10 |
| Cabling direction | Horizontal |
| Connector power | Seetronic Powercon |
| Connector data | Seetronic Ethercon |
| Serviceability | Front and Rear |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
| Panel | 500 × 1000 mm | 500 × 750 mm |
|---|---|---|
| Resolution W | 104 | 104 |
| Resolution H | 208 | 156 |
| Width | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 1000 mm (39.4 in) | 750 mm (29.5 in) |
| Aspect ratio | 0.5:1 | 0.7:1 |
| Weight | 14.5 kg (32 lb) | 11.5 kg (25.4 lb) |
| Modules wide | 2 | 2 |
| Modules tall | 4 | 3 |
| Max W | 360 | 270 |
| Avg W | 126 | 94.5 |
| BTU/hr | 1,227.6 | 920.7 |
| Max stacking | N/A | N/A |
| Max hanging | N/A | N/A |
Panel
| Pixel pitch | 4.80 |
|---|---|
| Pixel type | SMD |
| Max brightness | 5,000 |
| Environmental rating | Outdoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 90 mm (3.5 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 52 |
|---|---|
| Module resolution H (px) | 52 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD1921 |
|---|---|
| Shader/mask type | Plastic |
| Pixel density (/m2) | 43,264 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 5000:1 |
PROCESSING
| IC driver | ICN2153 |
|---|---|
| Scan rate | 1/13 |
| Processing depth (bit) | 13 |
| Processing depth range | 8-13 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1-4 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 720 |
| Avg W / m² | 252 |
| Max A/cascade | 16 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP65 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M10 |
| Cabling direction | Horizontal |
| Connector power | Seetronic Powercon |
| Connector data | Seetronic Ethercon |
| Serviceability | Front and Rear |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
| Panel | 500 × 1000 mm | 500 × 750 mm |
|---|---|---|
| Resolution W | 84 | 84 |
| Resolution H | 168 | 126 |
| Width | 500 mm (19.7 in) | 500 mm (19.7 in) |
| Height | 1000 mm (39.4 in) | 750 mm (29.5 in) |
| Aspect ratio | 0.5:1 | 0.7:1 |
| Weight | 16 kg (35.3 lb) | 12 kg (26.5 lb) |
| Modules wide | 2 | 2 |
| Modules tall | 4 | 3 |
| Max W | 360 | 270 |
| Avg W | 126 | 94.5 |
| BTU/hr | 1,227.6 | 920.7 |
| Max stacking | N/A | N/A |
| Max hanging | N/A | N/A |
Panel
| Pixel pitch | 5.95 |
|---|---|
| Pixel type | SMD |
| Max brightness | 5,000 |
| Environmental rating | Outdoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 92 mm (3.6 in) |
|---|---|
| Panel area | 0.5 m² (5.4 ft²) |
MODULES
| Module resolution W (px) | 42 |
|---|---|
| Module resolution H (px) | 42 |
| Module width | 250 mm (9.8 in) |
| Module height | 250 mm (9.8 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | SMD1921 |
|---|---|
| Shader/mask type | Plastic |
| Pixel density (/m2) | 28,224 |
| Viewing angle H/V | 160° / 160° |
| LED lifetime (h) | 50,000 |
| Contrast | 5000:1 |
PROCESSING
| IC driver | ICN2150 |
|---|---|
| Scan rate | 1/7 |
| Processing depth (bit) | 13 |
| Processing depth range | 8-13 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3,840 |
| Frame rate default | 60 |
| Frame rate options | 60 |
| Color temp default (K) | 8,500 |
| Color temp range (K) | 2000-9300 |
| Color gamut | 1-4 |
POWER
| Bonding Wire | Copper |
|---|---|
| Power common | Anode |
| Max W / m² | 720 |
| Avg W / m² | 252 |
| Max A/cascade | 16 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -20°C - +50°C (-4.0°F to 122.0°F) |
|---|---|
| Temp storage | -20°C - +60°C (-4.0°F to 140.0°F) |
| Operating humidity | 10% - 90%, non-condensing |
DETAILS
| IP rating | IP65 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M10 |
| Cabling direction | Horizontal |
| Connector power | Seetronic Powercon |
| Connector data | Seetronic Ethercon |
| Serviceability | Front and Rear |
| Warranty (yrs) | 2 |
| Warranty available | 5 |
CERTIFICATIONS
| EMC rating | B |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), UKCA (UK), CB (EMEA), BIS (India), KC (S.Korea), PSE (Japan) |
Receiving cards
| Receiving cards | A5s Plus |
|---|---|
| Vanguard 1G | NN25 |
Panel sizes
Sizes and configuration
- 500 × 1,000 mm (19.7 × 39.4 in)
- 500 × 750 mm (19.7 × 29.5 in)
Applications
Where it is used
- Building façades and exterior signage
- Campus, stadium, and transit-hub information displays
- Outdoor secure facilities and installations requiring daylight-readable screens
- Drive-up and plaza displays viewed at close range
Add-ons & accessories
Configure it your way
Headers for hanging
Flight cases
DATA+: redundant receiving cards
PER+: redundant power suppliesFrequently asked questions
About Einsteinium
What is the Einsteinium series?
Einsteinium is our outdoor LED display series, engineered for permanent installation in full weather exposure. With pixel pitches from 2.6mm to 5.9mm, 4,500–5,000 nit brightness standard, and IP65-sealed die-cast aluminum construction, Einsteinium serves billboards, building facades, storefronts, stadiums, and transportation hubs year-round.

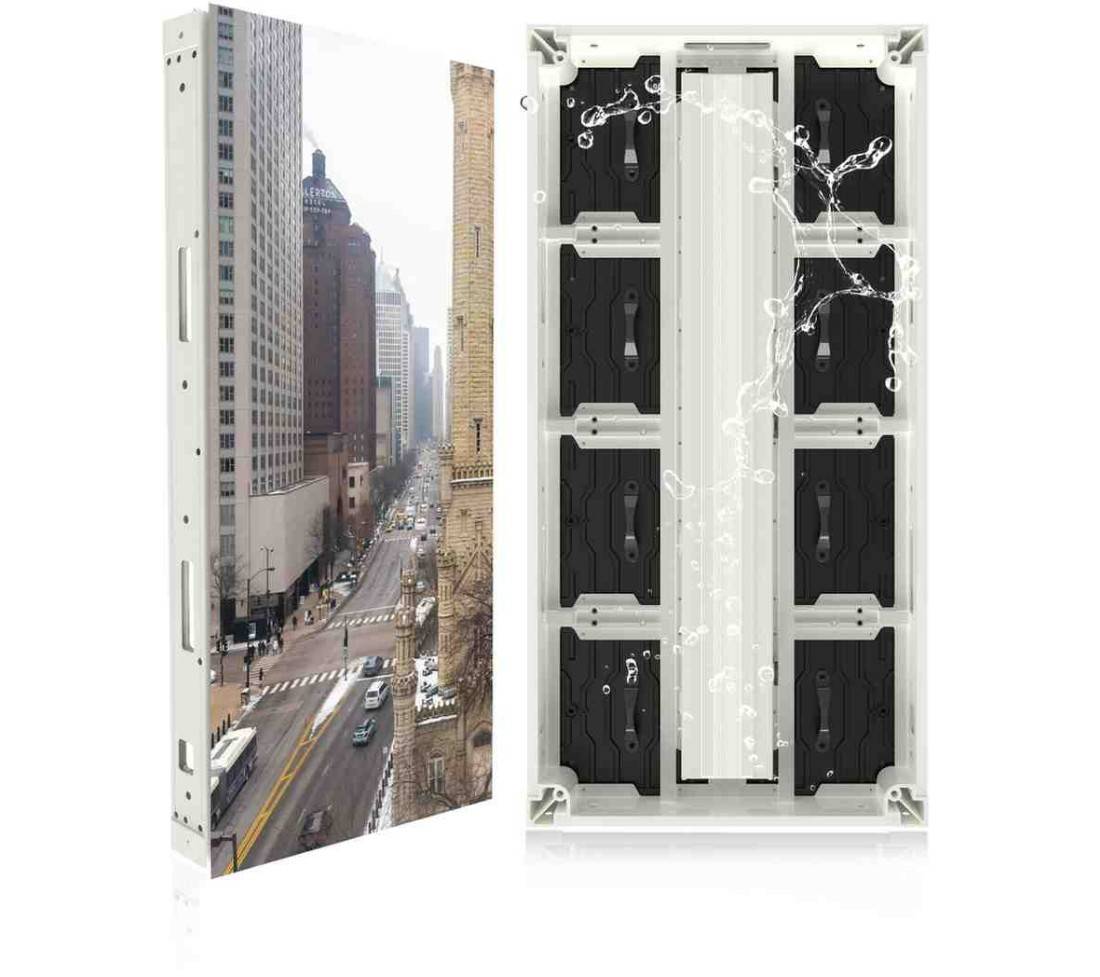

Can Einsteinium handle outdoor weather in all kinds of conditions?
Yes — Einsteinium is built to withstand outdoor conditions across the board: IP65-rated sealing protects internal components from rain, dust, and moisture; rugged die-cast aluminum panels resist the elements; and the series operates from −20°C to +50°C. Sunlight, rain, heat, and cold are the design brief, not exceptions.
What pixel pitches are available for Einsteinium?
Einsteinium comes in four pixel pitches — 2.6mm, 3.9mm, 4.8mm, and 5.9mm — spanning street-level storefront viewing to highway billboard distances. The finer pitches serve audiences approaching on foot; the larger pitches deliver clear visuals economically where viewers are vehicles away.
How do I choose the correct pixel pitch for my outdoor display?
Match pitch to your audience's normal viewing distance — a useful outdoor rule: the pitch in millimeters approximates the distance in meters at which no pixelation is visible. A 2.6mm display reads clean from about 2.6 meters (8.5 feet), ideal for storefronts and street level; 4.8mm and 5.9mm hold crisp at billboard and stadium ranges while costing meaningfully less.
Does bright sunshine affect Einsteinium?
Not meaningfully — every Einsteinium configuration delivers 4,500–5,000 nits standard, enough output that direct sunlight doesn't wash out the image. High brightness paired with strong contrast keeps visuals sharp and attention-grabbing from morning through the brightest part of the day, with content clearly legible against sunlit surroundings.
What does "front-serviceable" mean, and how does Einsteinium handle service access?
In short Front-serviceable means components swap from the display's face — and Einsteinium supports front and rear service independently and simultaneously.
Front-serviceable means modules, receiving cards, and power supplies can be accessed and swapped from the display's face — essential when a display mounts flat against a building. Einsteinium goes further: full front and rear service, independently and simultaneously, so whether the display hangs on a wall, rooftop structure, or billboard frame with catwalk access, technicians work from whichever side the installation offers.
What panel sizes does Einsteinium use?
Einsteinium builds on two panel sizes — 500×1000mm and 500×750mm — combining to hit target display dimensions efficiently in outdoor scale. The half-meter width module keeps panels manageable during installation on lifts and structures while assembling into seamless large-format displays.
Does Einsteinium support redundancy for critical outdoor displays?
Yes — dual power supply and dual receiving card options are available, keeping the display running through a component failure until scheduled service. For revenue-generating billboards and public information displays where dark time is costly, redundancy converts emergencies into maintenance appointments.
What are common uses of the Einsteinium series?
Einsteinium serves the full outdoor landscape: digital billboards along highways and atop buildings, storefront and business-front displays that pull foot traffic inside, stadium and arena exteriors, event venues, transportation hubs sharing schedules and updates, and public or corporate spaces bringing information and energy outdoors.
What warranty and service come with Einsteinium?

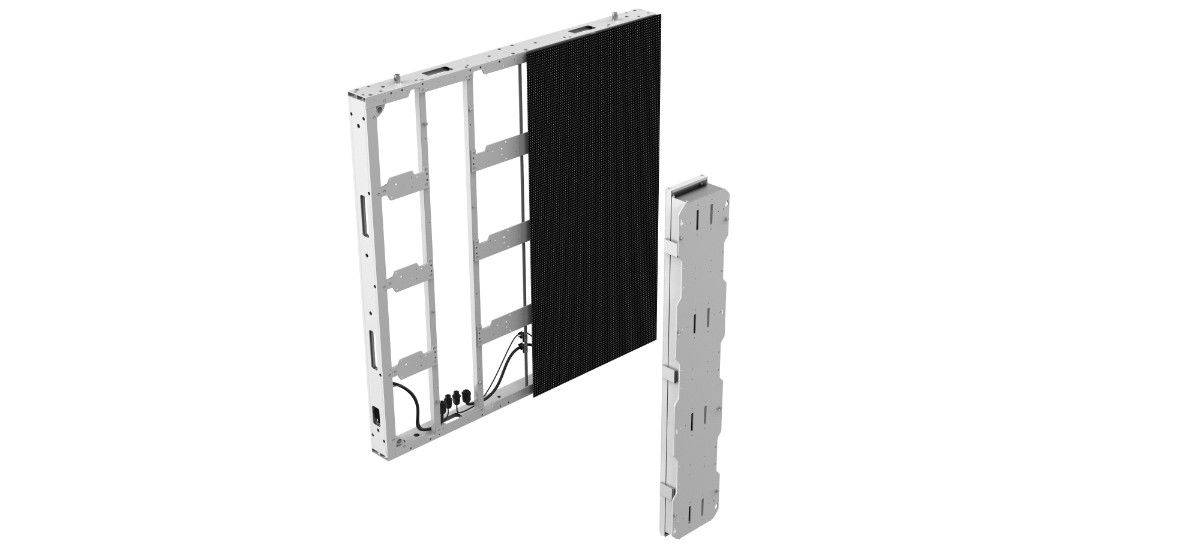

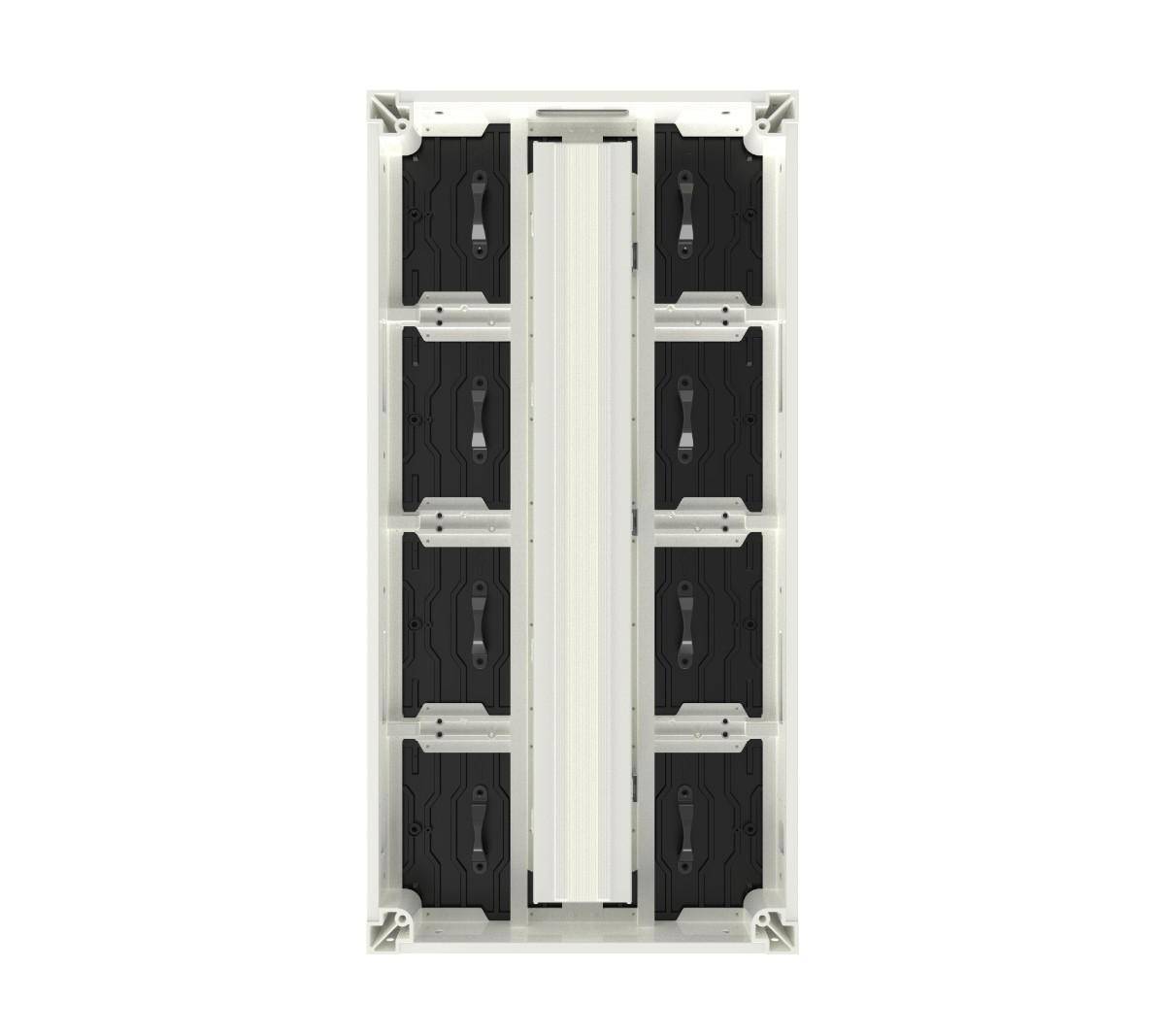

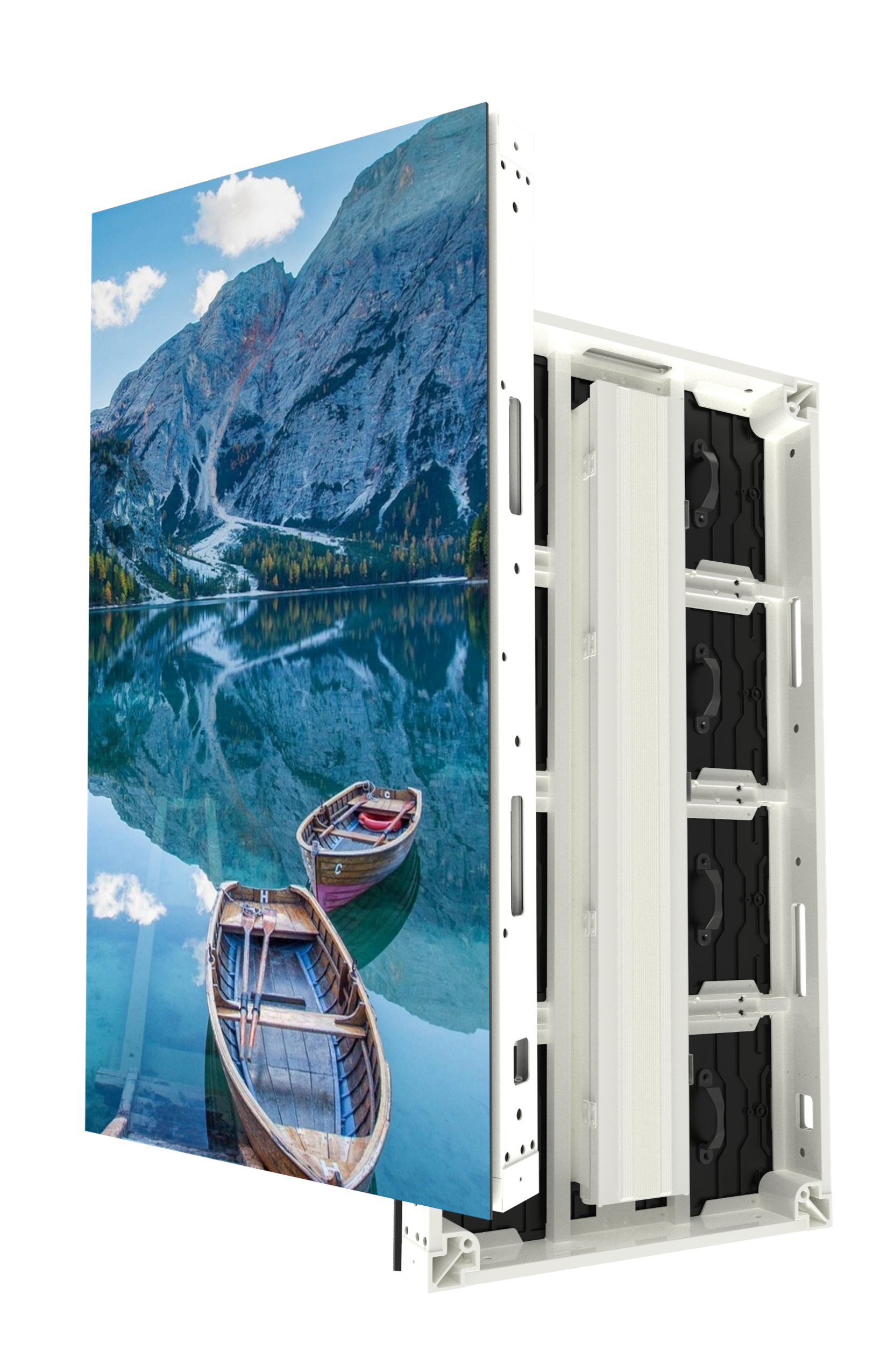

Einsteinium includes a 2-year warranty, extendable to 5 years, with spare parts included for onsite repairs. Combined with simultaneous front-and-rear serviceability and hot-swappable components, most repairs complete in a single visit — without cranes, disassembly, or extended dark time.
What does fine pitch mean for an outdoor display?
Most outdoor LED uses a coarse pitch suited to long viewing distances. A fine pitch lets the Einsteinium be viewed from a sidewalk or plaza without visible pixels.
Can it be sized to my building?
Yes. Multiple cabinet heights and widths allow the finished display to come close to the requested measurements.
