16:9 Panels · Indoor, fixed installation

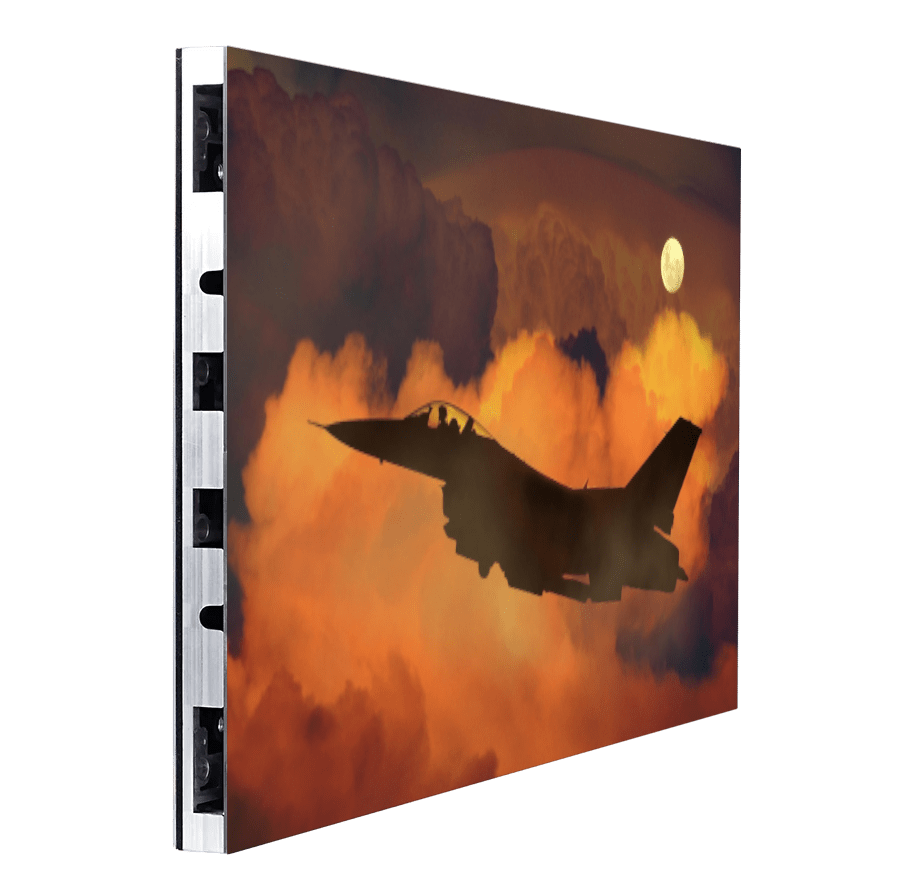

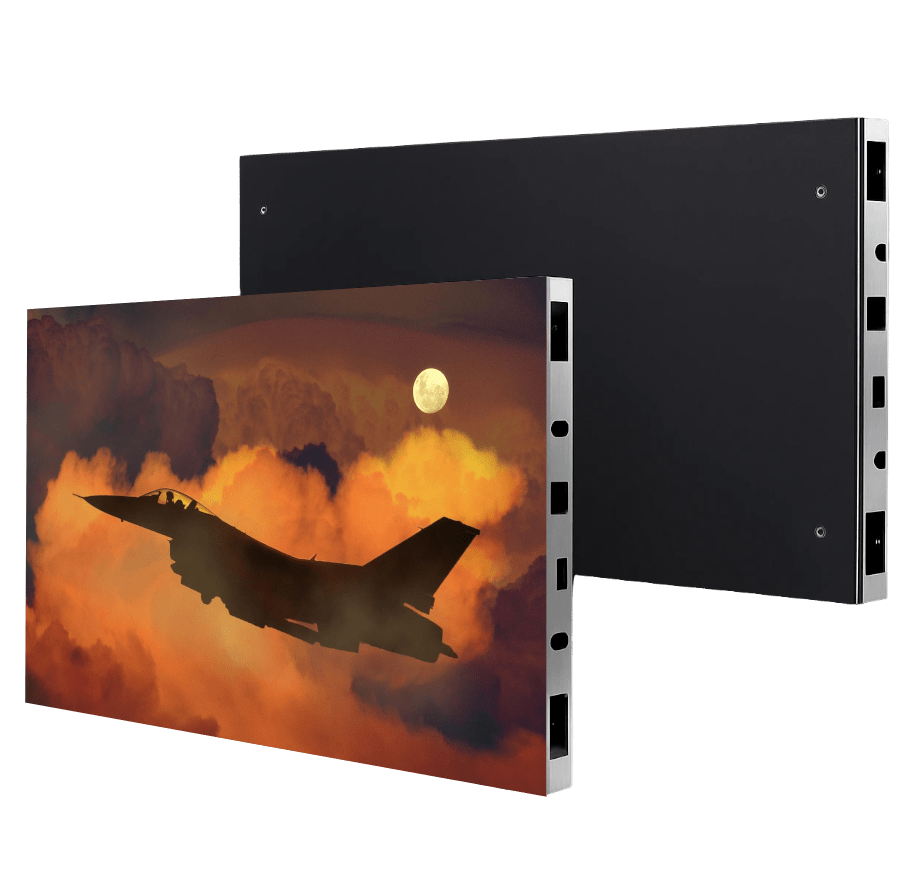

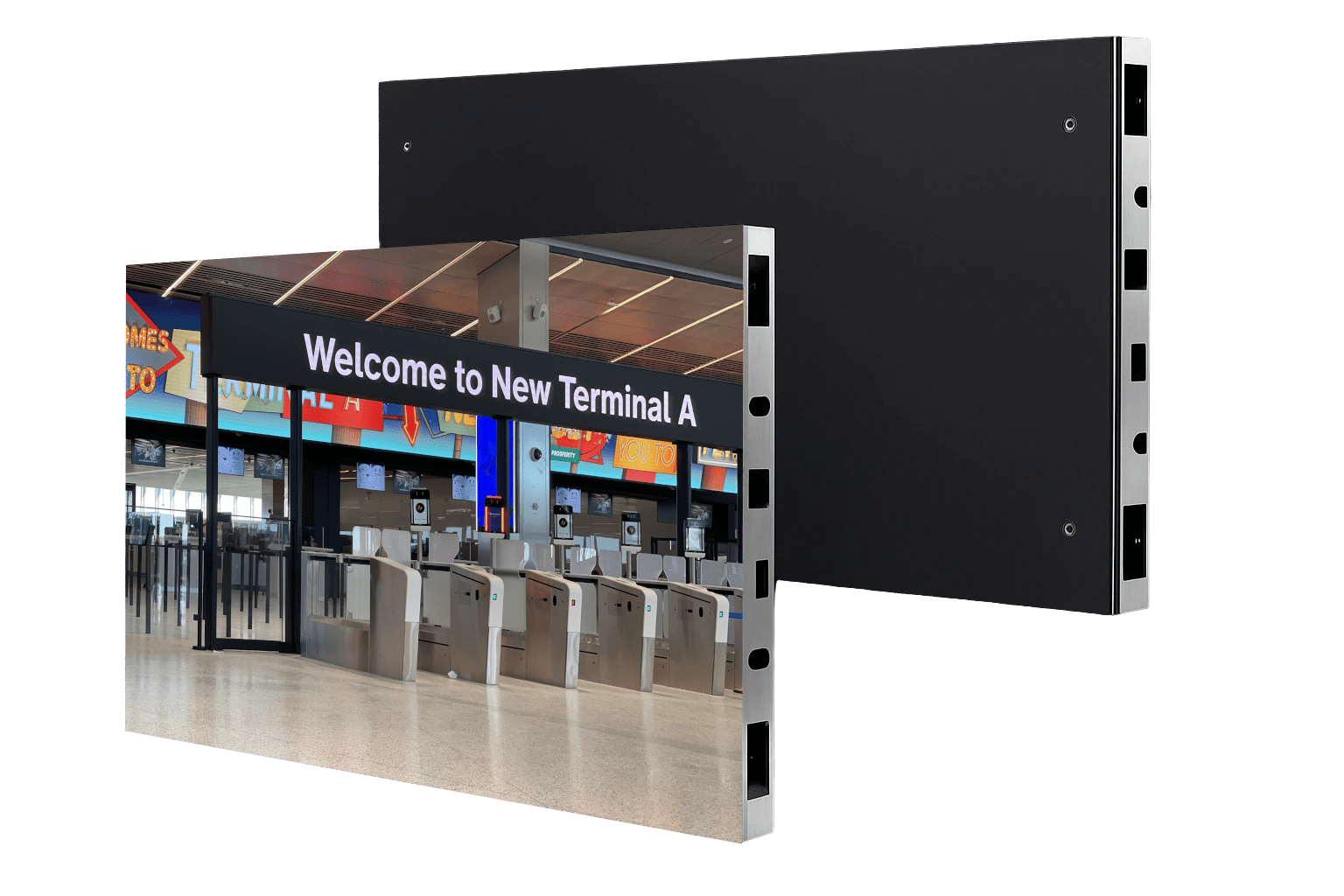

Axion COB
Chip-On-Board Fine-Pitch Indoor LED Display
The Axion COB is a 27-inch, 16:9 fine-pitch indoor DVLED panel that uses chip-on-board (COB) LED technology with flip-chip, common-cathode architecture. COB bonds the LED chips directly to the board and seals them under an epoxy layer, giving a seamless, impact-resistant surface with wide viewing angles and lower power draw than conventional SMD panels. It is the choice for high-traffic or touch-adjacent spaces where durability and image uniformity matter most.
Ideal for Cool touch and close audience
Pixel pitch (mm)
- 0.6COB
- 0.7COB
- 0.9COB
- 1.2COB
- 1.5COB
- 1.8COB
Specifications
Axion COB
Panel sizes
| Panel | 600 × 337.5 mm |
|---|---|
| Resolution W | 960 |
| Resolution H | 540 |
| Width | 600 mm (23.6 in) |
| Height | 337.5 mm (13.3 in) |
| Aspect ratio | 16:9 |
| Weight | 4.69 kg (10.3 lb) |
| Modules wide | 4 |
| Modules tall | 2 |
| Max W | 91.1 |
| Avg W | 31.9 |
| BTU/hr | 310.7 |
| Max stacking | 30 |
| Max hanging | N/A |
Panel
| Pixel pitch | 0.62 |
|---|---|
| Pixel type | COB |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 28 mm (1.1 in) |
|---|---|
| Panel area | 0.2025 m² (2.2 ft²) |

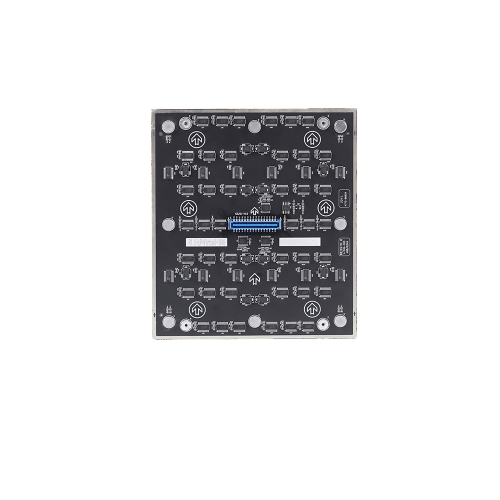

MODULES
| Module resolution W (px) | 240 |
|---|---|
| Module resolution H (px) | 270 |
| Module width | 150 mm (5.9 in) |
| Module height | 168.75 mm (6.6 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | COB |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 2,560,000 |
| Viewing angle H/V | 170° / 170° |
| LED lifetime (h) | 100,000 |
| Contrast | 20,000:1 |
PROCESSING
| IC driver | XM11203 |
|---|---|
| Scan rate | 1/30(v) |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3840-7680 |
| Frame rate default | 60 |
| Frame rate options | 50, 60 |
| Color temp default (K) | 7,500 |
| Color temp range (K) | 2000-12000 |
| Color gamut | 95%-97% |
POWER
| Bonding Wire | Flip-chip |
|---|---|
| Power common | Cathode |
| Max W / m² | 450 |
| Avg W / m² | 157.5 |
| Max A/cascade | 15 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -10°C - +40°C (14.0°F to 104.0°F) |
|---|---|
| Temp storage | -20°C - +50°C (-4.0°F to 122.0°F) |
| Operating humidity | 10% - 80%, non-condensing |
DETAILS
| IP rating | IP41 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M8 |
| Cabling direction | Vertical |
| Connector power | V3D |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 3 |
| Warranty available | 10 |
CERTIFICATIONS
| EMC rating | A |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), CB (EMEA) |
Receiving cards
| Receiving cards | A8S-Pro |
|---|---|
| Vanguard 1G | NN45 |
Panel sizes
| Panel | 600 × 337.5 mm |
|---|---|
| Resolution W | 768 |
| Resolution H | 432 |
| Width | 600 mm (23.6 in) |
| Height | 337.5 mm (13.3 in) |
| Aspect ratio | 16:9 |
| Weight | 4.69 kg (10.3 lb) |
| Modules wide | 4 |
| Modules tall | 2 |
| Max W | 91.1 |
| Avg W | 31.9 |
| BTU/hr | 310.7 |
| Max stacking | 30 |
| Max hanging | N/A |
Panel
| Pixel pitch | 0.78 |
|---|---|
| Pixel type | COB |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 28 mm (1.1 in) |
|---|---|
| Panel area | 0.2025 m² (2.2 ft²) |
MODULES
| Module resolution W (px) | 192 |
|---|---|
| Module resolution H (px) | 216 |
| Module width | 150 mm (5.9 in) |
| Module height | 168.75 mm (6.6 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | COB |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 1,638,400 |
| Viewing angle H/V | 170° / 170° |
| LED lifetime (h) | 100,000 |
| Contrast | 20,000:1 |
PROCESSING
| IC driver | XM11203 |
|---|---|
| Scan rate | 1/32(v) |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3840-7680 |
| Frame rate default | 60 |
| Frame rate options | 50, 60 |
| Color temp default (K) | 7,500 |
| Color temp range (K) | 2000-12000 |
| Color gamut | 95%-97% |
POWER
| Bonding Wire | Flip-chip |
|---|---|
| Power common | Cathode |
| Max W / m² | 450 |
| Avg W / m² | 157.5 |
| Max A/cascade | 15 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -10°C - +40°C (14.0°F to 104.0°F) |
|---|---|
| Temp storage | -20°C - +50°C (-4.0°F to 122.0°F) |
| Operating humidity | 10% - 80%, non-condensing |
DETAILS
| IP rating | IP41 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M8 |
| Cabling direction | Vertical |
| Connector power | V3D |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 3 |
| Warranty available | 10 |
CERTIFICATIONS
| EMC rating | A |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), CB (EMEA) |
Receiving cards
| Receiving cards | A8S-Pro |
|---|---|
| Vanguard 1G | NN45 |
Panel sizes
| Panel | 600 × 337.5 mm |
|---|---|
| Resolution W | 640 |
| Resolution H | 360 |
| Width | 600 mm (23.6 in) |
| Height | 337.5 mm (13.3 in) |
| Aspect ratio | 16:9 |
| Weight | 4.69 kg (10.3 lb) |
| Modules wide | 4 |
| Modules tall | 2 |
| Max W | 91.1 |
| Avg W | 31.9 |
| BTU/hr | 310.7 |
| Max stacking | 30 |
| Max hanging | N/A |
Panel
| Pixel pitch | 0.93 |
|---|---|
| Pixel type | COB |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 28 mm (1.1 in) |
|---|---|
| Panel area | 0.2025 m² (2.2 ft²) |
MODULES
| Module resolution W (px) | 160 |
|---|---|
| Module resolution H (px) | 180 |
| Module width | 150 mm (5.9 in) |
| Module height | 168.75 mm (6.6 in) |
| Modules total | 8 |
PIXEL INFORMATION
| Pixel package | COB |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 1,137,778 |
| Viewing angle H/V | 170° / 170° |
| LED lifetime (h) | 100,000 |
| Contrast | 20,000:1 |
PROCESSING
| IC driver | ICN1069 |
|---|---|
| Scan rate | 1/40(v) |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3840-7680 |
| Frame rate default | 60 |
| Frame rate options | 50, 60 |
| Color temp default (K) | 7,500 |
| Color temp range (K) | 2000-12000 |
| Color gamut | 95%-97% |
POWER
| Bonding Wire | Flip-chip |
|---|---|
| Power common | Cathode |
| Max W / m² | 450 |
| Avg W / m² | 157.5 |
| Max A/cascade | 15 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -10°C - +40°C (14.0°F to 104.0°F) |
|---|---|
| Temp storage | -20°C - +50°C (-4.0°F to 122.0°F) |
| Operating humidity | 10% - 80%, non-condensing |
DETAILS
| IP rating | IP41 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M8 |
| Cabling direction | Vertical |
| Connector power | V3D |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 3 |
| Warranty available | 10 |
CERTIFICATIONS
| EMC rating | A |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), CB (EMEA) |
Receiving cards
| Receiving cards | A10s-Pro |
|---|---|
| Vanguard 1G | NN50 |
Panel sizes
| Panel | 600 × 337.5 mm |
|---|---|
| Resolution W | 480 |
| Resolution H | 270 |
| Width | 600 mm (23.6 in) |
| Height | 337.5 mm (13.3 in) |
| Aspect ratio | 16:9 |
| Weight | 4.69 kg (10.3 lb) |
| Modules wide | 2 |
| Modules tall | 2 |
| Max W | 91.1 |
| Avg W | 31.9 |
| BTU/hr | 310.7 |
| Max stacking | 30 |
| Max hanging | N/A |
Panel
| Pixel pitch | 1.25 |
|---|---|
| Pixel type | COB |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 28 mm (1.1 in) |
|---|---|
| Panel area | 0.2025 m² (2.2 ft²) |
MODULES
| Module resolution W (px) | 240 |
|---|---|
| Module resolution H (px) | 135 |
| Module width | 300 mm (11.8 in) |
| Module height | 168.75 mm (6.6 in) |
| Modules total | 4 |
PIXEL INFORMATION
| Pixel package | COB |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 640,000 |
| Viewing angle H/V | 170° / 170° |
| LED lifetime (h) | 100,000 |
| Contrast | 20,000:1 |
PROCESSING
| IC driver | ICN1069 |
|---|---|
| Scan rate | 1/40(v) |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3840-7680 |
| Frame rate default | 60 |
| Frame rate options | 50, 60 |
| Color temp default (K) | 7,500 |
| Color temp range (K) | 2000-12000 |
| Color gamut | 95%-97% |
POWER
| Bonding Wire | Flip-chip |
|---|---|
| Power common | Cathode |
| Max W / m² | 450 |
| Avg W / m² | 157.5 |
| Max A/cascade | 15 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -10°C - +40°C (14.0°F to 104.0°F) |
|---|---|
| Temp storage | -20°C - +50°C (-4.0°F to 122.0°F) |
| Operating humidity | 10% - 80%, non-condensing |
DETAILS
| IP rating | IP41 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M8 |
| Cabling direction | Vertical |
| Connector power | V3D |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 3 |
| Warranty available | 10 |
CERTIFICATIONS
| EMC rating | A |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), CB (EMEA) |
Receiving cards
| Receiving cards | A8S-Pro |
|---|---|
| Vanguard 1G | NN45 |
Panel sizes
| Panel | 600 × 337.5 mm |
|---|---|
| Resolution W | 384 |
| Resolution H | 216 |
| Width | 600 mm (23.6 in) |
| Height | 337.5 mm (13.3 in) |
| Aspect ratio | 16:9 |
| Weight | 4.69 kg (10.3 lb) |
| Modules wide | 2 |
| Modules tall | 2 |
| Max W | 91.1 |
| Avg W | 31.9 |
| BTU/hr | 310.7 |
| Max stacking | 30 |
| Max hanging | N/A |
Panel
| Pixel pitch | 1.56 |
|---|---|
| Pixel type | COB |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 28 mm (1.1 in) |
|---|---|
| Panel area | 0.2025 m² (2.2 ft²) |
MODULES
| Module resolution W (px) | 192 |
|---|---|
| Module resolution H (px) | 108 |
| Module width | 300 mm (11.8 in) |
| Module height | 168.75 mm (6.6 in) |
| Modules total | 4 |
PIXEL INFORMATION
| Pixel package | COB |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 409,600 |
| Viewing angle H/V | 170° / 170° |
| LED lifetime (h) | 100,000 |
| Contrast | 20,000:1 |
PROCESSING
| IC driver | ICN1069 |
|---|---|
| Scan rate | 1/32(v) |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3840-7680 |
| Frame rate default | 60 |
| Frame rate options | 50, 60 |
| Color temp default (K) | 7,500 |
| Color temp range (K) | 2000-12000 |
| Color gamut | 95%-97% |
POWER
| Bonding Wire | Flip-chip |
|---|---|
| Power common | Cathode |
| Max W / m² | 450 |
| Avg W / m² | 157.5 |
| Max A/cascade | 15 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -10°C - +40°C (14.0°F to 104.0°F) |
|---|---|
| Temp storage | -20°C - +50°C (-4.0°F to 122.0°F) |
| Operating humidity | 10% - 80%, non-condensing |
DETAILS
| IP rating | IP41 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M8 |
| Cabling direction | Vertical |
| Connector power | V3D |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 3 |
| Warranty available | 10 |
CERTIFICATIONS
| EMC rating | A |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), CB (EMEA) |
Receiving cards
| Receiving cards | A8S-Pro |
|---|---|
| Vanguard 1G | NN45 |
Panel sizes
| Panel | 600 × 337.5 mm |
|---|---|
| Resolution W | 320 |
| Resolution H | 180 |
| Width | 600 mm (23.6 in) |
| Height | 337.5 mm (13.3 in) |
| Aspect ratio | 16:9 |
| Weight | 4.69 kg (10.3 lb) |
| Modules wide | 2 |
| Modules tall | 2 |
| Max W | 91.1 |
| Avg W | 31.9 |
| BTU/hr | 310.7 |
| Max stacking | 30 |
| Max hanging | N/A |
Panel
| Pixel pitch | 1.87 |
|---|---|
| Pixel type | COB |
| Max brightness | 1,000 |
| Environmental rating | Indoor |
| Deployment | Fixed Installation |
DIMENSIONS & WEIGHTS
| Panel depth | 28 mm (1.1 in) |
|---|---|
| Panel area | 0.2025 m² (2.2 ft²) |
MODULES
| Module resolution W (px) | 160 |
|---|---|
| Module resolution H (px) | 90 |
| Module width | 300 mm (11.8 in) |
| Module height | 168.75 mm (6.6 in) |
| Modules total | 4 |
PIXEL INFORMATION
| Pixel package | COB |
|---|---|
| Shader/mask type | N/A |
| Pixel density (/m2) | 284,444 |
| Viewing angle H/V | 170° / 170° |
| LED lifetime (h) | 100,000 |
| Contrast | 20,000:1 |
PROCESSING
| IC driver | ICN1069 |
|---|---|
| Scan rate | 1/30(h) |
| Processing depth (bit) | 14 |
| Processing depth range | 8-16 |
| Refresh rate default | 3,840 |
| Refresh rate range | 3840-7680 |
| Frame rate default | 60 |
| Frame rate options | 50, 60 |
| Color temp default (K) | 7,500 |
| Color temp range (K) | 2000-12000 |
| Color gamut | 95%-97% |
POWER
| Bonding Wire | Flip-chip |
|---|---|
| Power common | Cathode |
| Max W / m² | 450 |
| Avg W / m² | 157.5 |
| Max A/cascade | 15 |
| Operating voltage | 100-240V AC, 50/60 Hz |
ENVIRONMENTAL
| Temp operating | -10°C - +40°C (14.0°F to 104.0°F) |
|---|---|
| Temp storage | -20°C - +50°C (-4.0°F to 122.0°F) |
| Operating humidity | 10% - 80%, non-condensing |
DETAILS
| IP rating | IP41 |
|---|---|
| Cabinet material | Die-cast Aluminum |
| Rear bolt threading | M8 |
| Cabling direction | Vertical |
| Connector power | V3D |
| Connector data | RJ45 |
| Serviceability | Front |
| Warranty (yrs) | 3 |
| Warranty available | 10 |
CERTIFICATIONS
| EMC rating | A |
|---|---|
| Certifications | CCC (CN), FCC (USA), ETL (USA), LVD (EU), CE (EU), RoHS (EU), CB (EMEA) |
Receiving cards
| Receiving cards | A8S-Pro |
|---|---|
| Vanguard 1G | NN45 |
Panel sizes
Sizes and configuration
- Axion COB is available as a single 600 × 337.5 mm panel, 27.1 inches on the diagonal. There is no half-width panel in this series.
Wall formats Walls build in 16:9 or 32:9. A 32:9 wall is the width of two 16:9 displays side by side, at the same height.
Applications
Where it is used
- Lobbies, briefing centers, and other high-traffic public spaces
- Simulation and training rooms with close viewing distances
- Broadcast and production studios
- Boardrooms where a seamless, LCD-like surface is required
Add-ons & accessories
Configure it your way
Trim: cosmetic edge protection
45° edges: convex and outside corners
Secure connection plates
Touch compatible
Cart: mobile cart options
Flight cases
R.PWR: remote AC to DC power
Hydrophobic treatmentDownloads

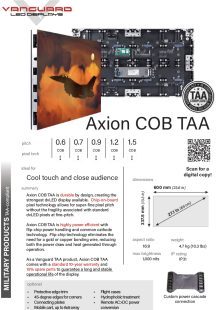

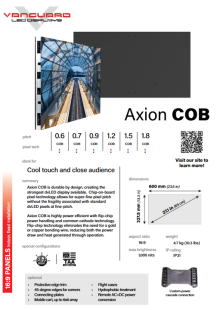

Brochure, flyer & cut sheet
Frequently asked questions
About Axion COB and fine-pitch LED
What is the Axion COB series?
Axion COB is our ultra-fine-pitch indoor LED series built on Chip-On-Board pixel technology, with pitches from 0.6mm to 1.9mm on native 16:9 panels. Flip-chip construction and common cathode power come standard across the series, delivering the close-viewing clarity, durability, and cool operation that boardrooms, control rooms, and broadcast environments demand.
What pixel pitches are available for Axion COB?
Axion COB spans six pitches — 0.6mm, 0.8mm, 0.9mm, 1.25mm, 1.5mm, and 1.9mm — the finest resolutions we offer. At 0.6mm, a single square meter carries over 2.5 million pixels, supporting comfortable viewing from just a few feet away for applications where audiences work directly beside the display.
What makes Axion COB more durable than conventional LED panels?
COB construction places diodes directly on the circuit board beneath a hardened protective coating — there are no individual pixel packages to snag, chip, or dislodge. The sealed surface resists impact, dust, and contact, making Axion COB inherently touch-safe for high-traffic spaces without requiring the add-on epoxy treatments conventional SMD panels need.
What does Axion COB's native 16:9 aspect ratio mean?
Video is produced in 16:9, and Axion COB panels are built in that same native ratio — so standard content fills the display exactly as shot, with no cropping or manipulation. Walls assemble to true Full HD, 4K, and 8K formats, which matters most where live video is central, such as house of worship services and broadcast.
What configuration options are available for Axion COB?
We call these Special Configurations — factory-built variants of the same panel, each tuned for a different priority. Axion COB comes in two: Normal, delivering 1,000 nits with 20,000:1 contrast for typical indoor environments, and High Bright, delivering 3,000 nits with 50,000:1 contrast for daylight-flooded spaces and applications demanding maximum punch. Both share the same flip-chip, common cathode foundation.
Is the Axion COB series TAA compliant?
Yes — Axion COB qualifies under the Trade Agreements Act for sale to any agency of the U.S. government, meeting federal purchasing standards for command centers, briefing rooms, and secure facilities where COB's fine pitch and durability are particularly valued.
What warranty and maintenance options come with Axion COB?
Axion COB includes a 3-year warranty, extendable to 10 years, with spare parts included in every project for onsite repairs. Modules, power supplies, and receiving cards are all hot-swappable from the front, restoring the display in minutes without powering down or accessing the rear.
Can Axion COB wrap around a 90-degree corner?
Yes — Axion COB offers frames with left or right 45° edges, joining two display faces cleanly around an outside corner with no pixel gap. Fine-pitch corner wraps create striking architectural effects — continuous imagery flowing around columns and wall edges at resolutions that hold up under close inspection.
Does Axion COB support touch interactivity?
Yes — touch is an available option for Axion COB, and the series is unusually well suited to it: the hardened COB surface withstands constant physical contact that would wear on conventional panels. Touch-enabled Axion COB serves collaboration rooms, wayfinding, museums, and interactive retail.
How does Axion COB compare to Axion Pro?
Axion COB and Axion Pro are siblings serving different priorities: Axion COB reaches finer pitches (down to 0.6mm versus 0.9mm), carries inherent surface durability, and runs lighter per panel — while Axion Pro offers more Special Configurations, and options like redundant power and embedded senders. Choose COB for the closest viewing and highest-contact spaces; choose Pro for configuration breadth.
What is a COB LED display?
A chip-on-board display mounts bare LED chips directly onto the circuit board and encapsulates them in epoxy, rather than using individually packaged SMD LEDs. The result is a smoother surface, better protection against knocks and dust, and consistent color at wide viewing angles.
What is flip-chip COB?
Flip-chip mounts the LED die face-down so the light-emitting side faces outward without wire bonds. This improves heat dissipation, reliability, and brightness efficiency.
Why common cathode?
Common-cathode driving supplies each color at its own optimal voltage, which reduces power consumption and heat compared with common-anode designs, extending panel life.
What is a 32:9 aspect ratio used for?
32:9 is the width of two 16:9 displays side by side. It suits wide dashboards, timelines, and multi-source views in control rooms and trading environments.
