Sidewinder
Roll-up
0.7
SMD
0.9
SMD
1.2
SMD
1.5
SMD
1.9
SMD
2.6
SMD
3.9
SMD
Sidewinder is the innovative application to bring LED where it
has never gone before. Featuring roll-able panels which are
only 13mm thick in total, Sidewinder panels are comprised of
slats. Each slat is only 62.5mm tall, and slats are hinged at
the face. Panels are combined to produce displays of every
size and need.
Sidewinder panels come standard with a protective epoxy
coating, making it the fine-pitch, high-durability display you
can trust. Sidewinder supports several unique applications,
including a rolling gate which turns a blocked pathway into a
rich and immersive display.
Special Configuration
Resources
Add-ons & Accessories
Frequently Asked Questions

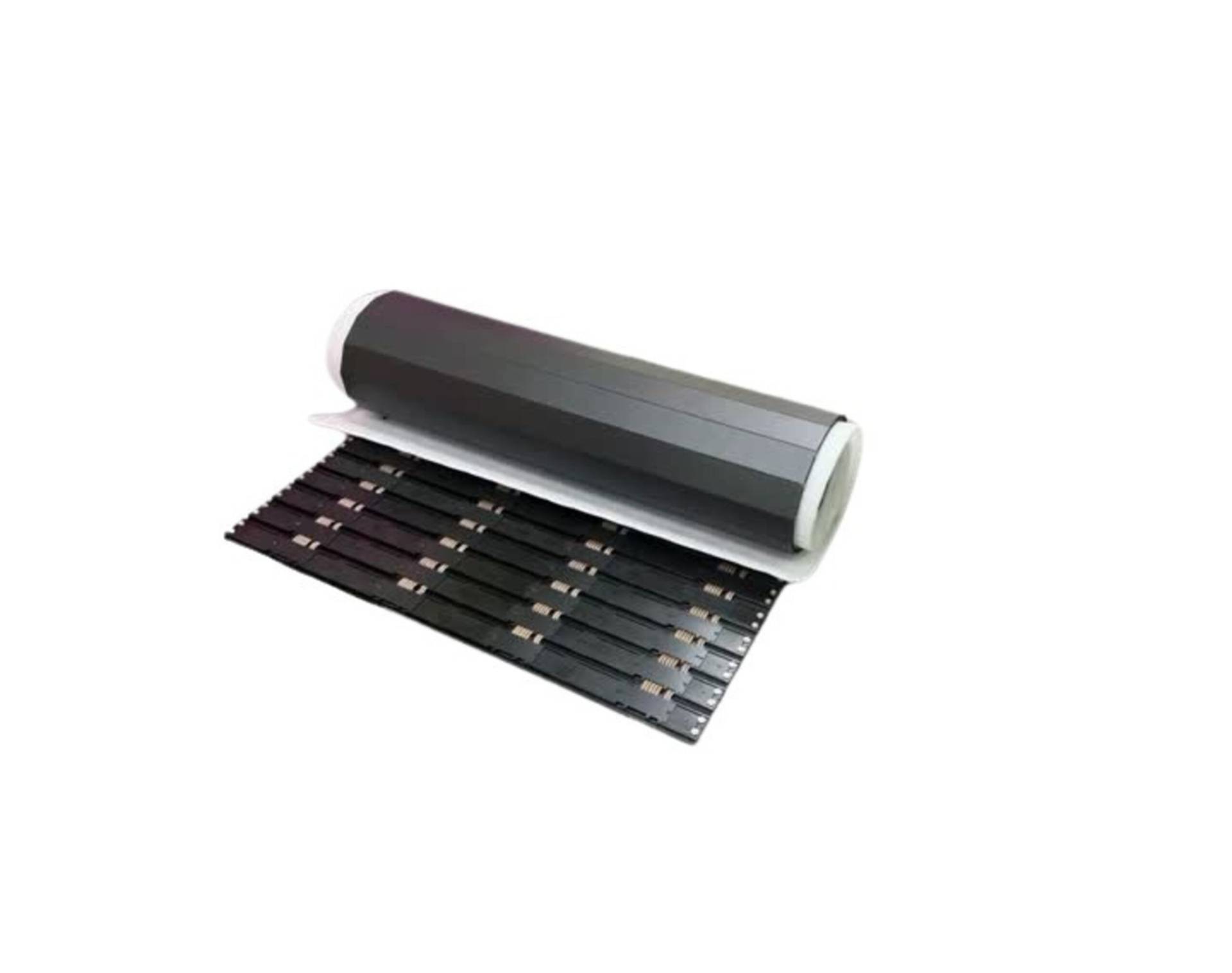

Sidewinder Roll-up is our rollable LED display — just 13mm thick in total — built from hinged slats that let the display roll for transport, storage, and deployment. One product serves four applications: ultra-thin wall displays, rolling gates, portable displays, and LED floors, at pitches as fine as 0.7mm.

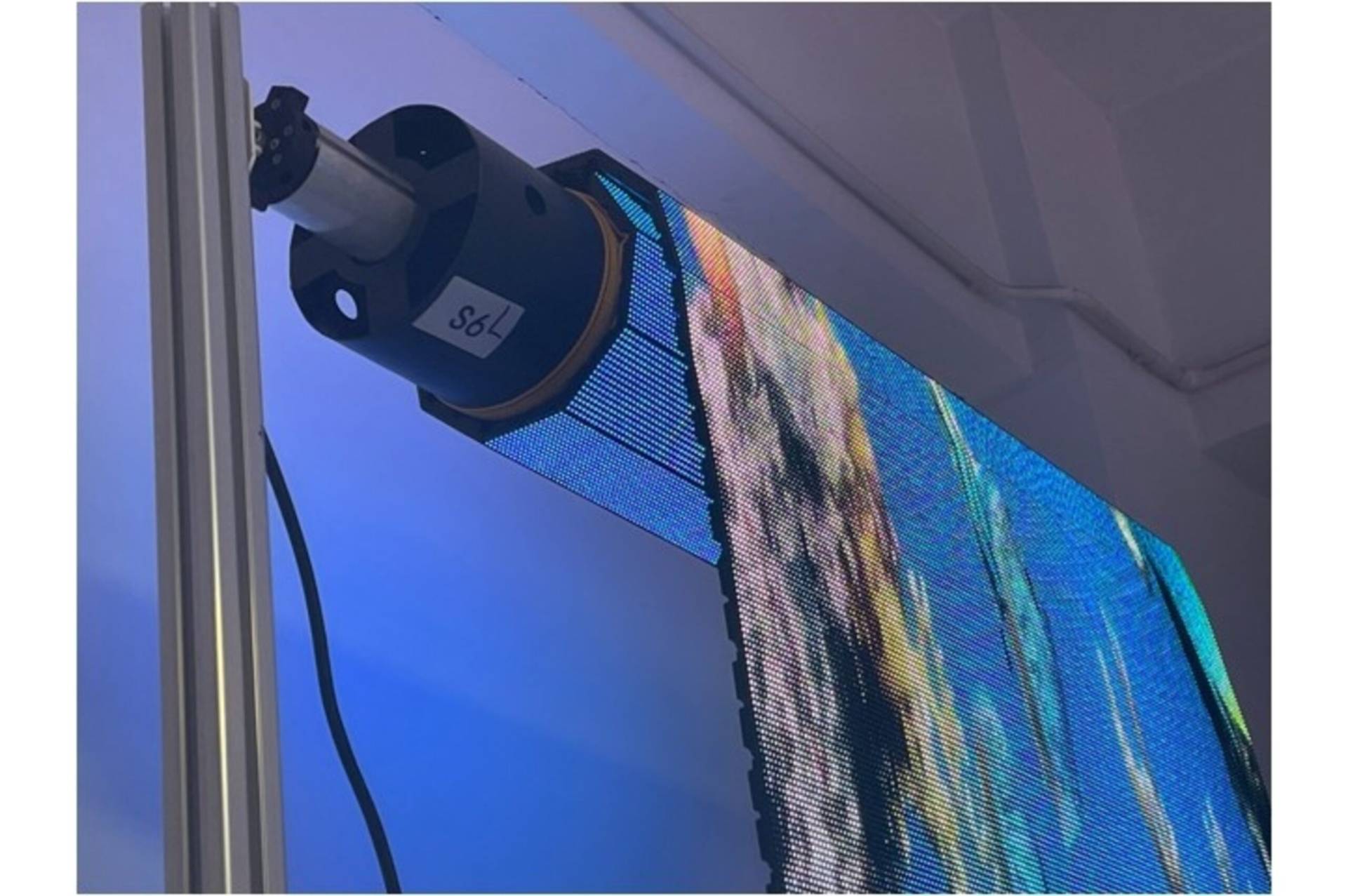

Sidewinder panels are built from slats just 62.5mm tall, hinged at the face — the display flexes at every hinge line, rolling like a scroll while presenting a seamless image when deployed. Slats combine in 500mm-wide units into displays of virtually any size, all at a total thickness of 13mm.
Sidewinder comes in seven pitches — 0.7mm, 0.9mm, 1.2mm, 1.5mm, 1.9mm, 2.6mm, and 3.9mm — with every pitch achieving true 16:9 displays at standard resolutions. The 0.7mm end delivers clarity at any viewing distance, remarkable for a display that rolls.

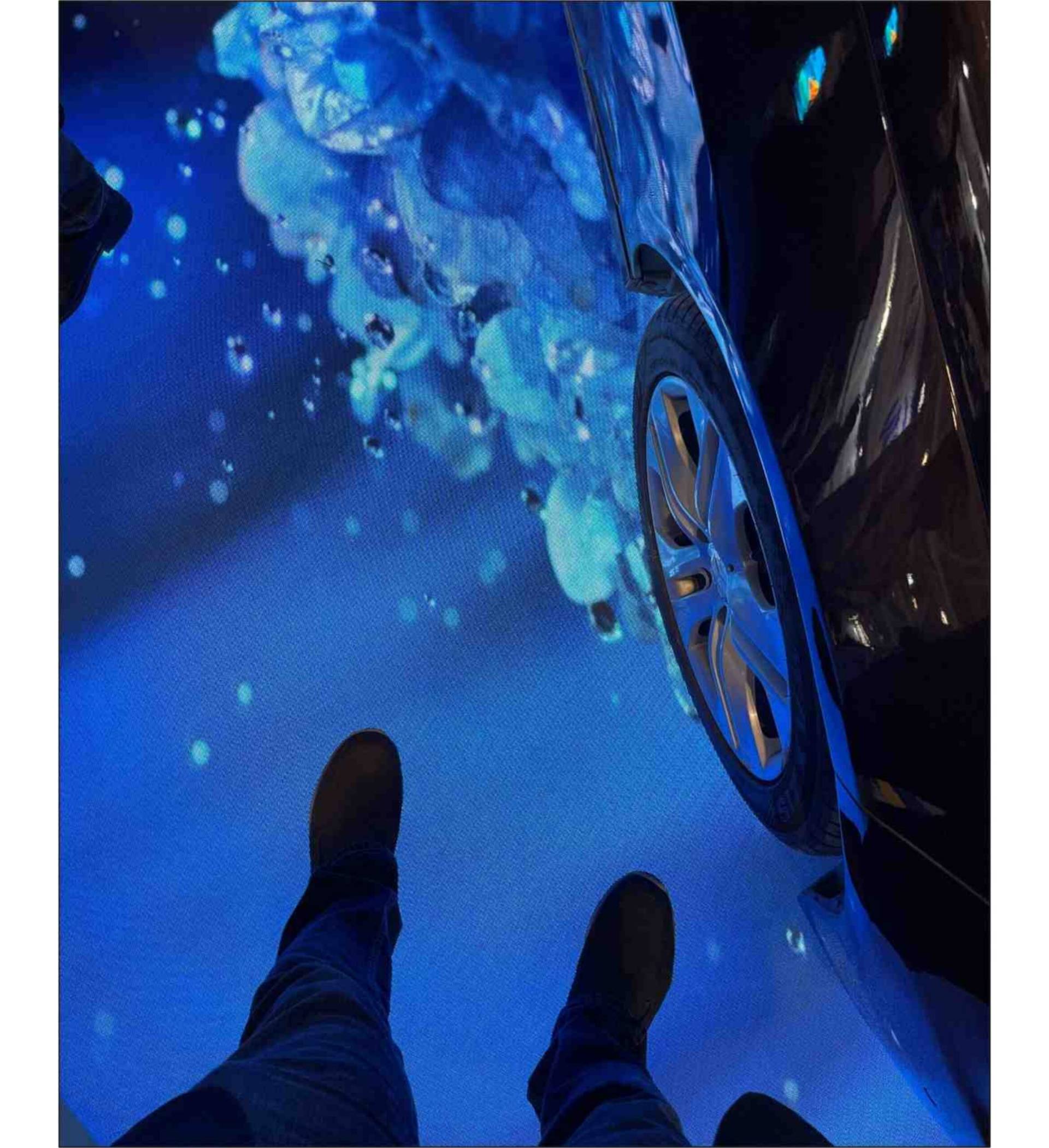

Yes — at 13mm, Sidewinder is the thinnest LED floor solution available, laying on the floor like a rug with pitches fine enough for any viewing distance. Modules carry a steel internal structure supporting even vehicle weight, and floor edge trim finishes the installation cleanly.
Sidewinder ships standard with a protective epoxy coating over the pixels, guarding against impact, dust, and moisture through rolling, deployment, and public contact — the protection that makes fine pitch trustworthy on a display that’s handled constantly. The front carries an IP63 rating for added assurance.
